Howo chicken Transport Truck Technical date

Chassis Brand

HOWO 4*2 LHD/RHD,Diesel,EURO III

Approx. Dimension

8265*2550*3980mm

Cab

Cab

2 persons‘ seat,With Air Conditioner

Engine/

chassic

Engine Make & Model

YuChai engine

Horse Powder

160HP

Brake

Air Brake

Wheelbase/No.of axle

4700/2

Tyre Specfication

10.00R20

Tyre Number

6+1

Max Speed

90 km/h

Lorry

Size

5900*2450*2500mm

Craftsmanship

The box body is manufactured by vacuum adsorption, integrated molding production line, sandwich composite bonding, and the thermal insulation performance reaches the national A-level standard.

Board material

The inner and outer wall panels are made of domestic high-quality 2.2mm FRP (no light absorption, good heat insulation, strong hardness, and anti-oxidation); the middle insulation layer is XPS extruded polystyrene board; the thickness of the car body is 8CM. The floor adopts aluminum checkered plate, and the door edge adopts labyrinth rubber sealing strip

Car body accessories

The surrounding of the box is made of aluminum alloy, stainless steel corners, stainless steel door locks, stainless steel door frames and hinges, and energy-saving LED lighting in the box.

constant temperature system

Hanxue refrigeration unit, (Adjustable temperature range -5℃--+28℃, adjusted at the driver cab)water heating

Ventilation equipment

5 ventilation windows can be opened on both sides of the box; 3 exhaust sunroofs are opened at the top, 5 electronic exhaust fans are opened on each side of the sunroof, and 4 tailgate exhaust fans are installed. There are air intake vents. Floor aluminum pattern ventilation duct. The carriage achieves ventilation without dead ends in front, back, left and right, ensuring a high survival rate of chicks.

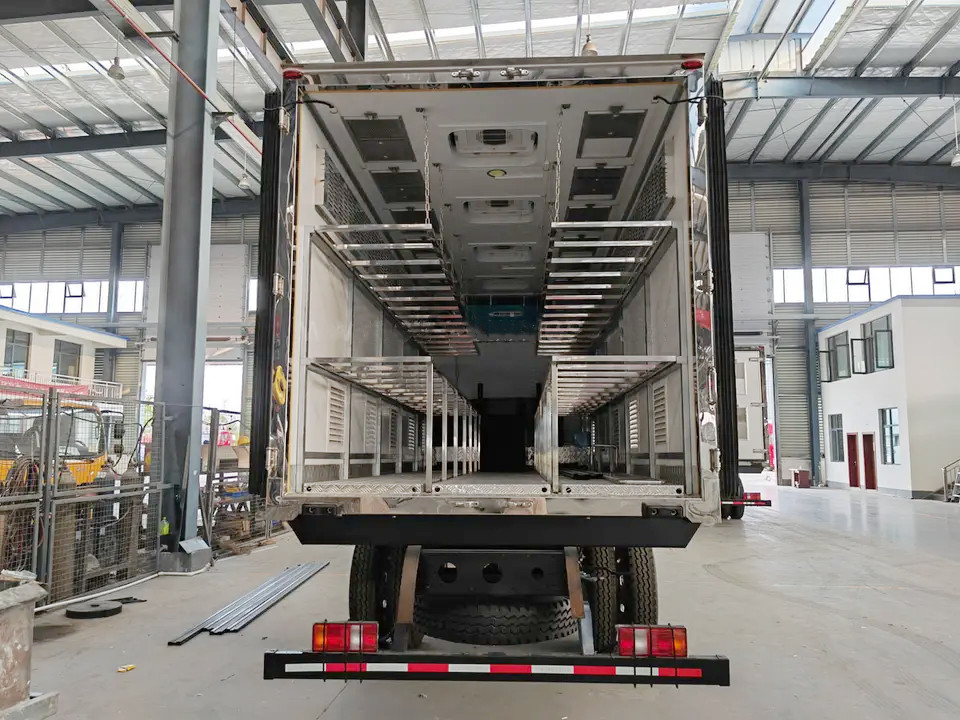

Flip Shelves

Manually turn over the stacking racks on both sides of the car body
