Brand : SINOTRUK
Condition: Brand New
Tire: 295/80R22.5 12R22.5 tubeless tire 10+1
Tank capacity(ton) : 10m³/12m³/14m³/Customized definition
Color：Customized definition
Product Parameters
Brand
SINOTRUK
Product name
HOWO Mixer truck 10m³
Truck model
ZZ5257GJBN3847W
Engine model
WD615.47,371hp,euro 2
Driving Position
Left/Right
Type
Water-cooled,four
strokes,6 cylinders in line,turbocharged, directly injection
Total Weight
25,000kg
Curb Weight
10580
Max speed(km/h)
78
Front/ Rear axle
HF9/HC16
Gear Box
HW19710,10 forwards and 2 reverse
Dimension(Lx W xH)(unloaded)(mm)
10820*2496*3900
Overhang(front/rear) (mm)
1500/2365
Wheel base (mm)
3825+1350
Tyres
12.00R20 10+1
Drum rotation speed
0-14r/min
Feeding Speed
>3.5m3/min
Water Tank Volume
400L
Discharge Remain Ratio
<0.2%
Water supply
Pressing type
The specific product parameters shall be subject to the salesman.

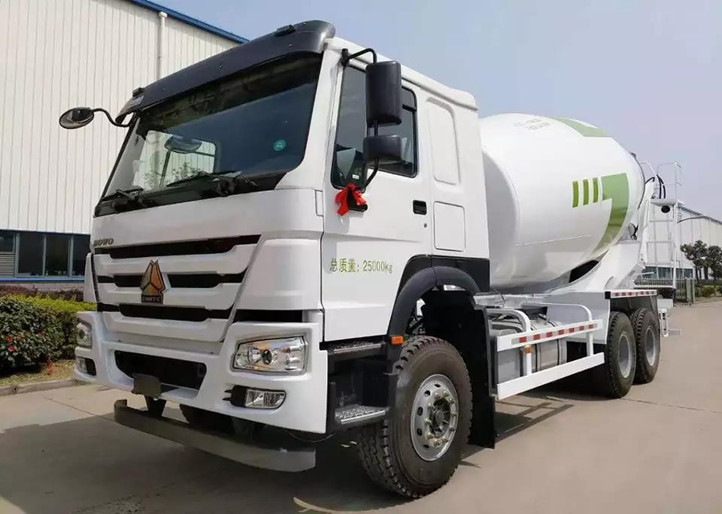

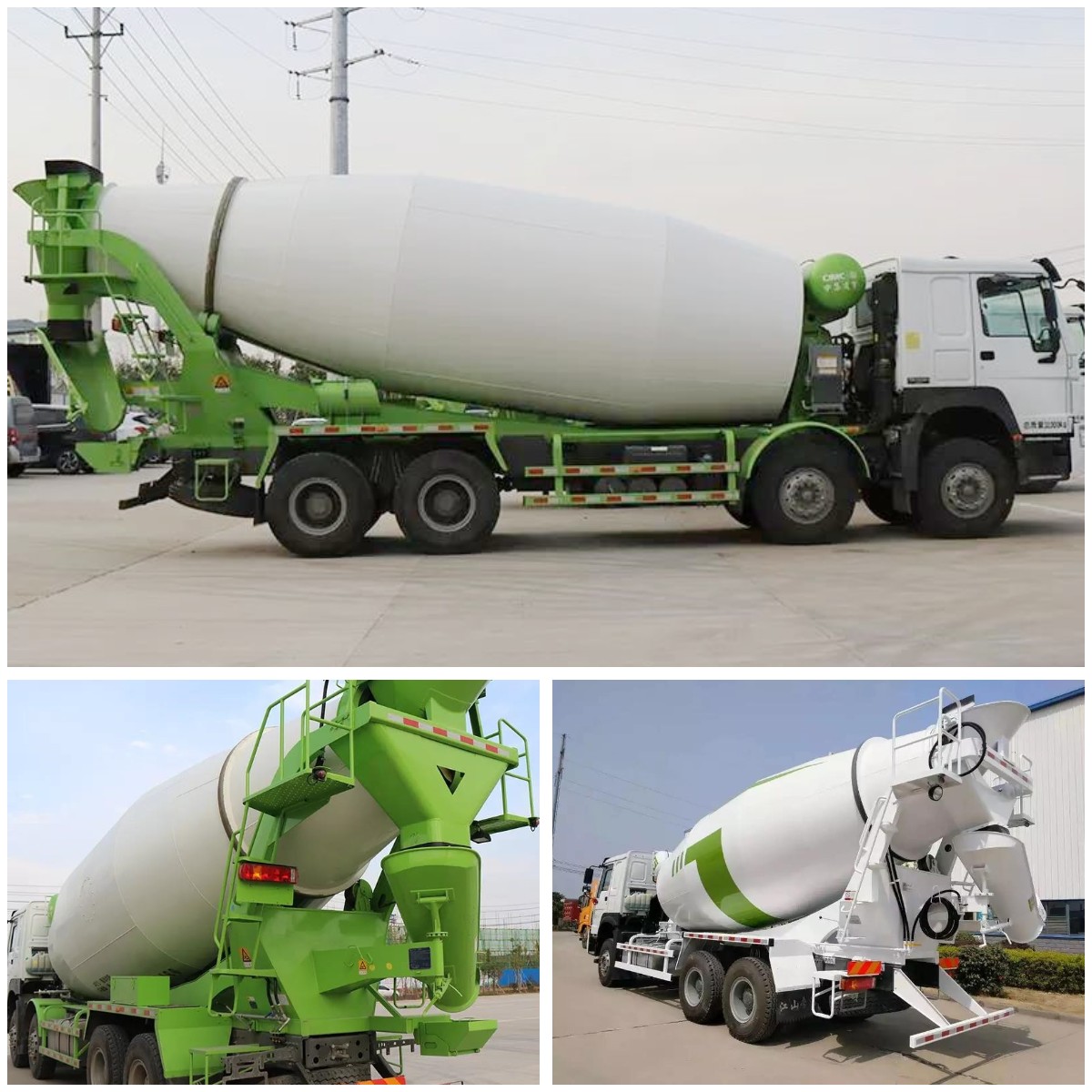

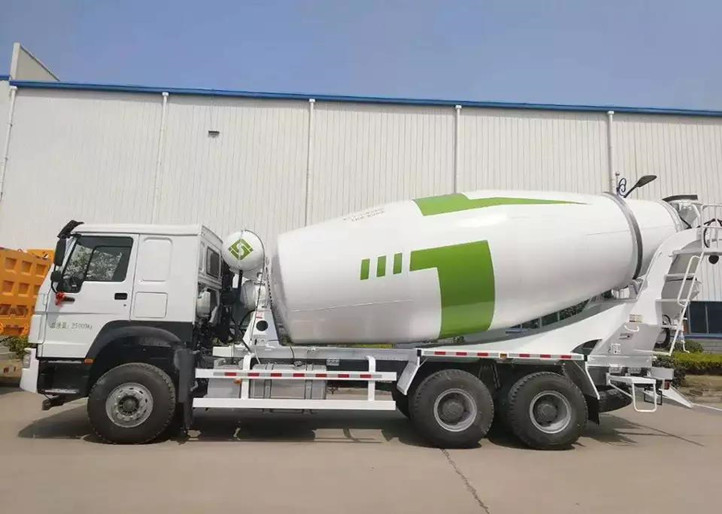

Product Images
