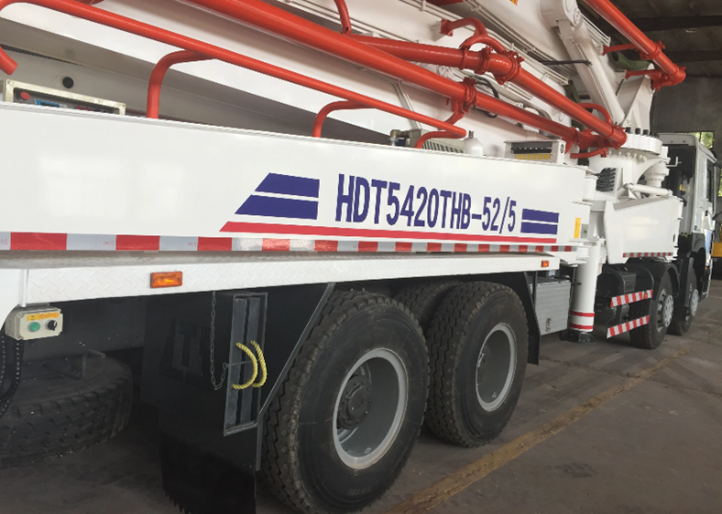

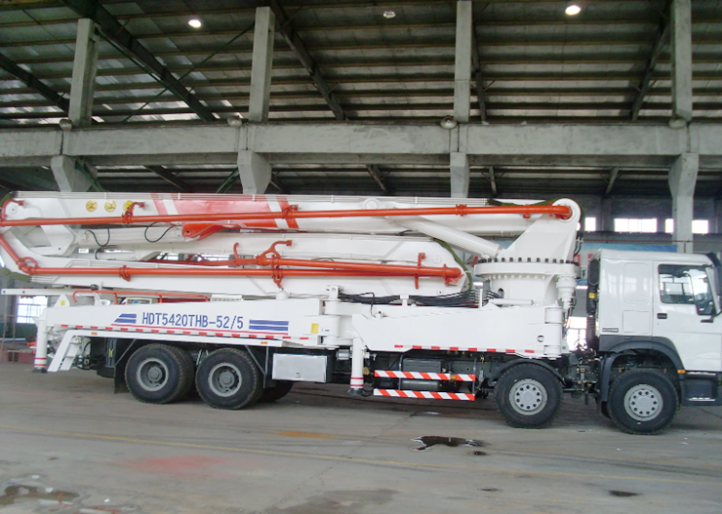

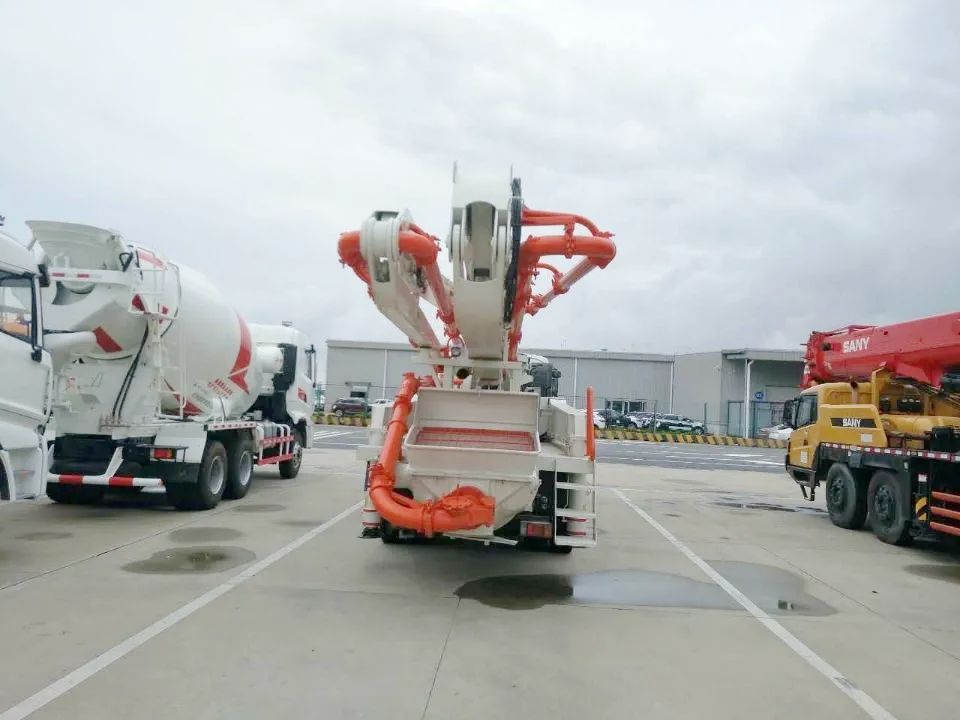

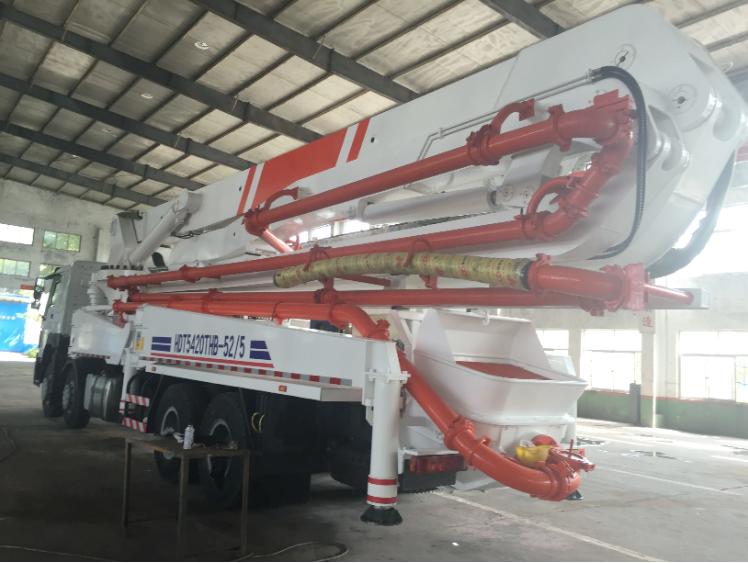

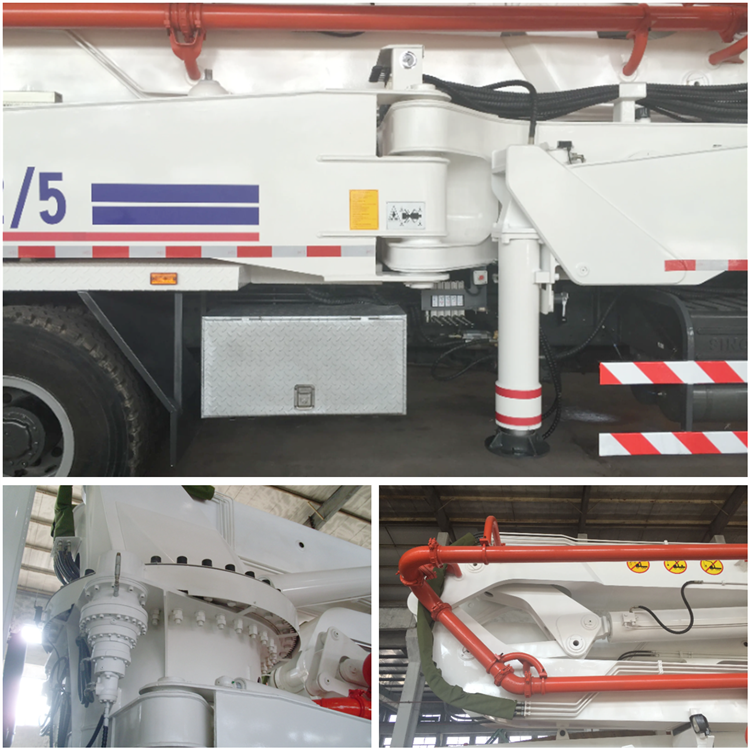

SINOTRUK HOWO 8x4 Pump Truck LHD/RHD

Engine emission standard

EURO II

Overall dimensions(L´W´H)

14360mm×2530mm×4000mm

Displacement/Rated power(L/kw)

10677/320

Steering type

Steering wheel

Axle numbers

4

Wheelbase(mm)

2300+4050+1350

Steel spring number (front/rear)

4/4/4

Track (front /rear)(mm)

2140/1804

Gearbox

HW19710

Max. overall mass(kg)

44000

Max. overall mass front axle(kg)

18000

Max overall mass middle/rear axle(kg)

26000

Permitted number in the driver cab

2

Front/rear overhang(mm)

1500/3320

Front/rear extension of boom(mm)

0/1840

Max. driving speed(km/h)

90

Min. ground clearance(mm)

312

Max. vertical conveying distance(m)

60M

Max. horizontal conveying distance(m)

52
