Drive type

8X4

Box dimension(mm)

7300×2300×1500

Curb weight(Kg)

12380

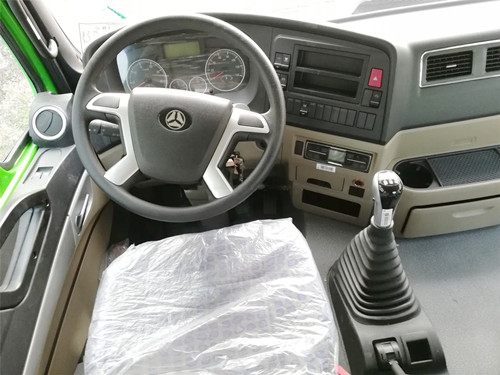

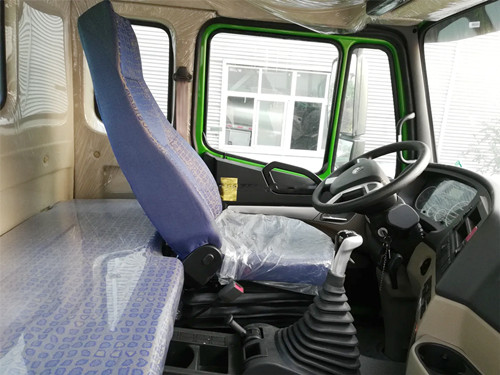

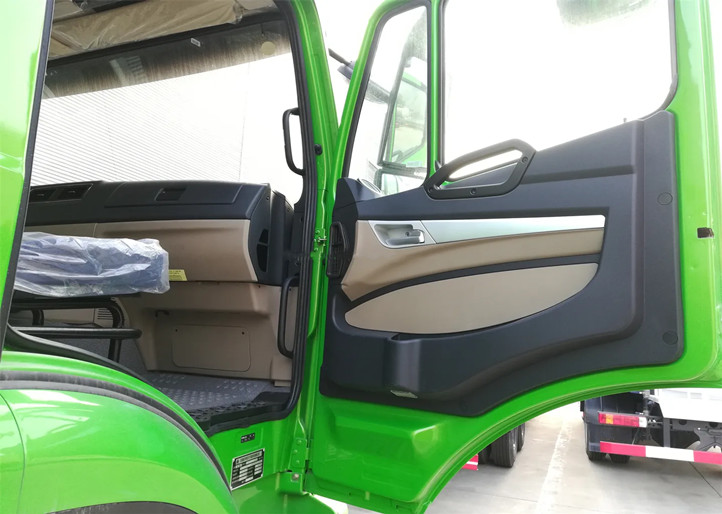

Cab

H77L cabin,single sleeper,A/C

Engine

Model

WP12.400E201

Max.output (kw/HP)

380/400/430

Max.torque (N•m)

1500@1100~1600 rpm

Displacement (ml)

＞9.6

Emission standard

Euro 2

Gear box

HW19710,manual,10 forward gears & 2 reverse gears

Front axle

VGD95*2   9.5T

Rear axle

HC16*2  16T

Steering gear

Bosch, LHD/RHD

Inner trimming

Standard configuration

Mechanical suspension seat

Lumbar support to the driver

Fuel tank

300L

Tyre specification

12.00R20 / Optional  12+1

Thickness of box

Side 6mm, bottom 8mm

Lifting system

Front hydraulic lifting
