Name

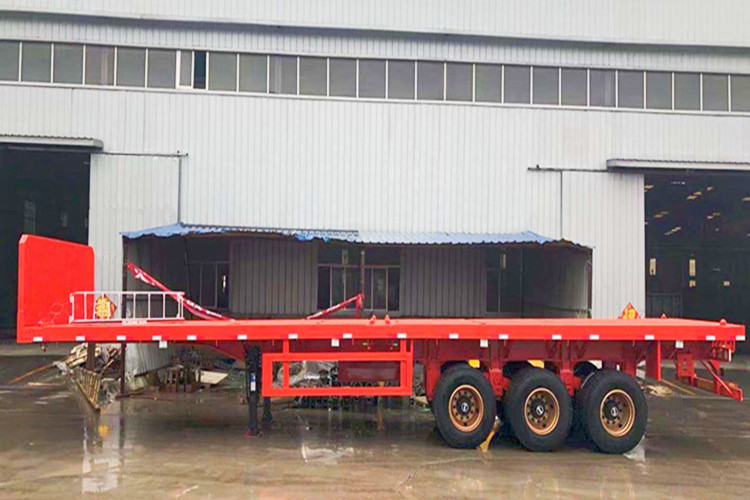

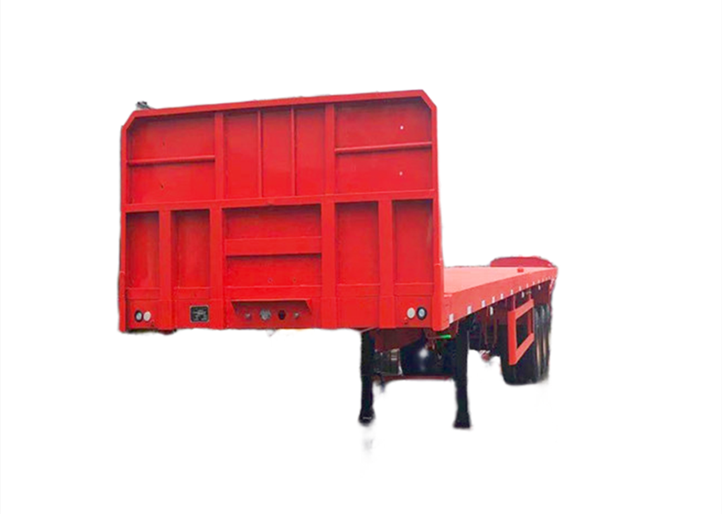

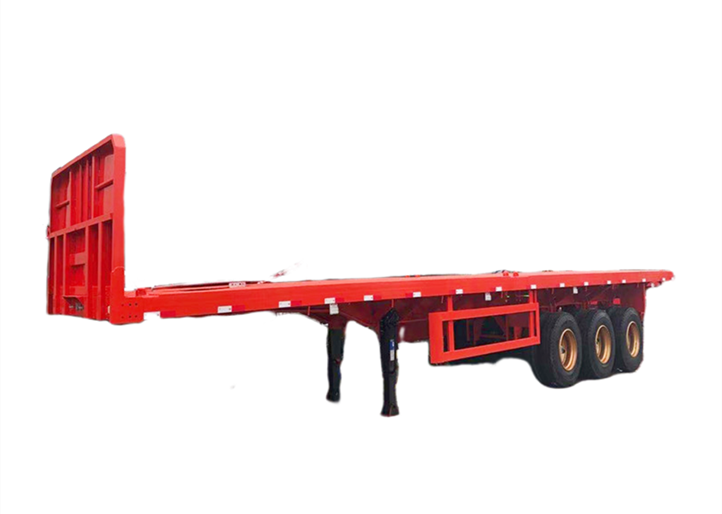

Flatbed semi trailer

Overall dimension

12500 *2500 * 1550mm（(According to customer demand)）

Loading capacity

30-150T

Tare Weight

6.5-10T

Axle

2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua

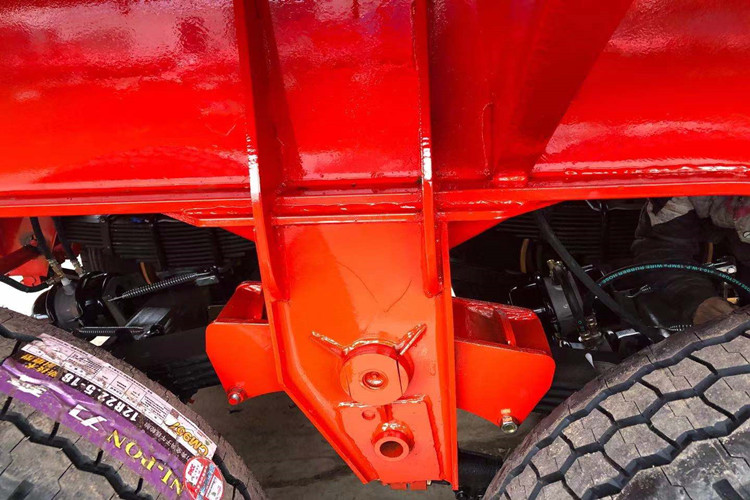

Suspension

Mechanical suspension(German Type or America Type) or Air suspension

Spring leaf

90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional)

Wheel base(mm)

6880+1310+1310.

Kingpin

JOST brand 2.0 or 3.5 inch bolts type or Welding type

Steel Spring

8/8/8, 10/10/10, 12/12/12 pieces per axle

Side beam

16mm-25mm channel steel (Material is Q235 carbon steel)

Landing gear

JOST/FUWA/Yahua brand 28T(two speed or single speed)

Platform plate

3mm Checkered steel plate

Brake system

Dual Line braking system

Electrical system

24V, 7 pin socket, One set 7-core standard Cable

Valve

WABCO/KANGJIAN valve

Tool box

1set standard tool box( waterproof type)

Light

Tail lamp with turn signal, brake light & reflector, side lamp etc

Painting

Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint

Shipping Terms

By bulk cargo carrier, RORO or 40HQ container
