Product

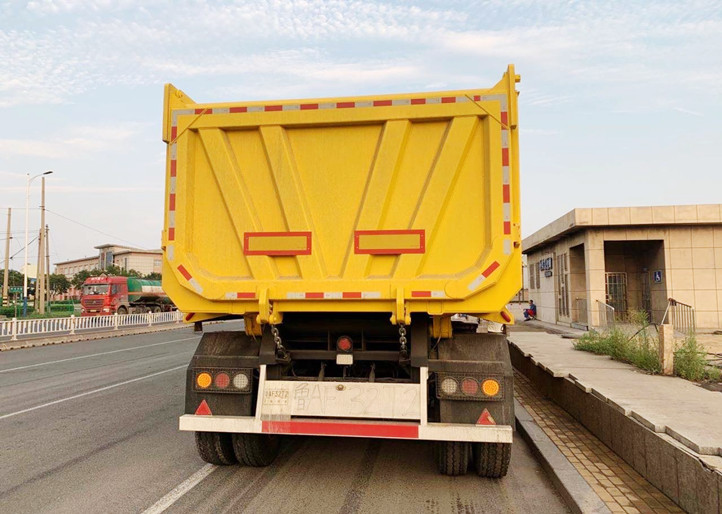

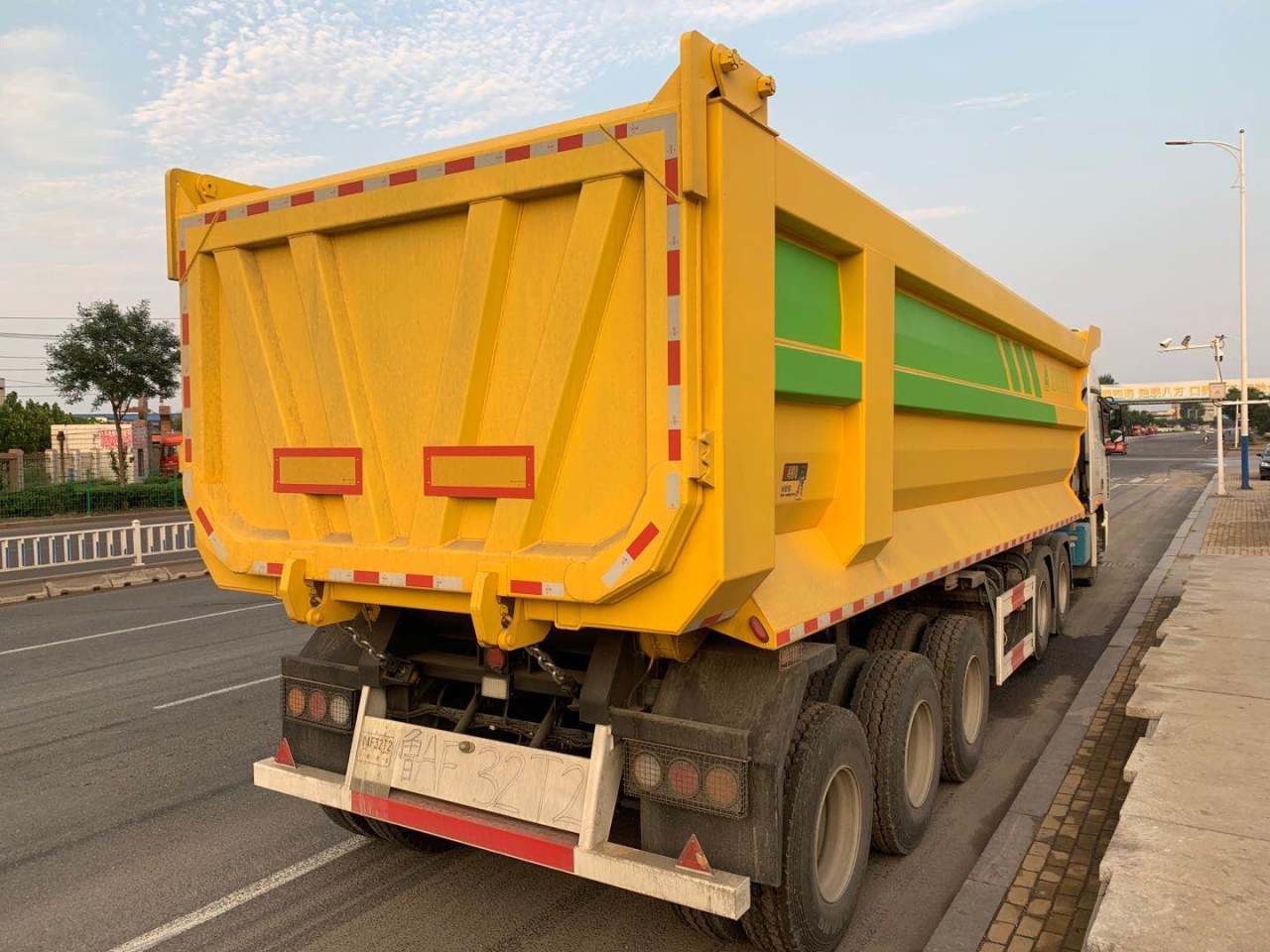

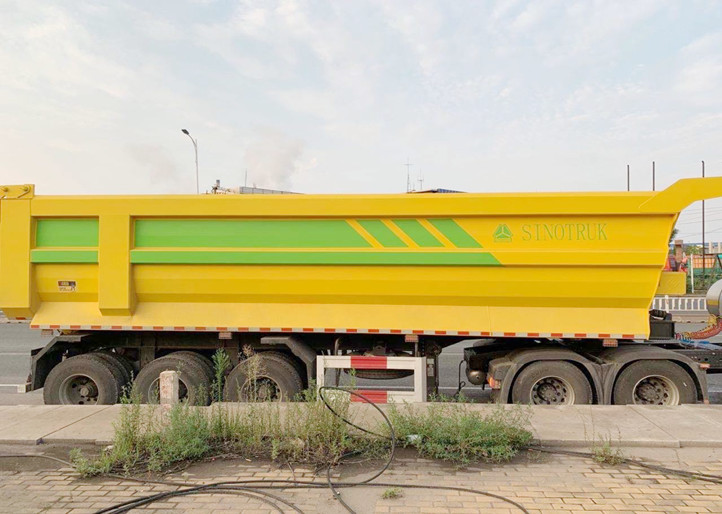

Dump/tipping semi trailer

Color

Any color will be available

Rated Load

30T-80T

Tare Weight

8000 kg

Wheel Base

6460+1310+1310, 5960+1310+1310 (mm)

Tyre Specifications

11.00R20 12PR, 12R22.5 12PR

No. Of the Tyres

12

Axle Brand

Customized definiton

No. Of the Axles

2/3/4

Axle-load

14T/16T/20T per axle

Pieces of leaf-spring

10 (8) (4)

Suspension

Independent stamping steel rigid suspension or air suspension, Germany design

King pin

50# or 90#

Outside Dimensions (LxWxH)

13000, 12500X2500X3040 (mm)

Interior Dimensions (LxWxH)

12850, 12350X2350X1500 (mm)

Material of the Main Beam

Q235B manganese plates, automatic submerged arc welded

Frame beam

Main frame is height 450/500mm,upper plate is 14mm, lower plate is14/16mm, middle is8/10mm side beam is 16# U-steel. left side: 3 or 4 pcs French door; Right side: 3 or 4 pcs hanging door. With19 pcs lock bar.

Brake System

Kemi or other Brand of China; ABS:RL122-1 (optional )

Brake Air Chamber

Four double and two single chamber

Bucket thickness(mm)

Floor 8 side 6

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Electrical System

1.Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Accessory

One tooling box with a set of standard trailer tool

Other Specifications

The max height of the rear guard from ground is 400mm, and the cross section is 160mmX70mm. (the de
