Condition : Brand New and Used
Brand : SUNWARD
Tonnes : 21tons
Model : SWE210
Product Parameters
| Specifications | ||
| Operating weight | t | 21.3 |
| Bucket capacity | m3 | 1.0 |
| Engine | ||
| Brand |
|
ISUZU |
| Model |
|
6BGITRP-03 |
| Type |
|
6-cylinder, 4-stroke, water-cooled |
| Power | kW/rpm | 110/2100 |
| Maximum torque | N-m/rpm | 658/1200 |
| Displacement | L | 6.494 |
| Hydraulic System | ||
| Type of main pump |
|
2 variable displacement piston pumps |
| Maximum flow of main pump | L/min | 2x234 |
| System pressure | MPa | 32.4/34.3 |
| Type of pilot pump |
|
1 gear pump |
| Maximum flow of pilot pump | L/min | 21 |
| Pressure of pilot pump | MPa | 3.9 |
| Performance | ||
| Rotating speed | rpm | 11.8 |
| Traceling speed | km/h | 4.9/3.1 |
| Gradeability | o | 35 |
| Track width | mm | 600 |
| Ground pressure | kPa | 43.2 |
| Tank Volume | ||
| Fuel tank volume | L | 370 |
| Hydraulic liquid tank volume | L | 250 |

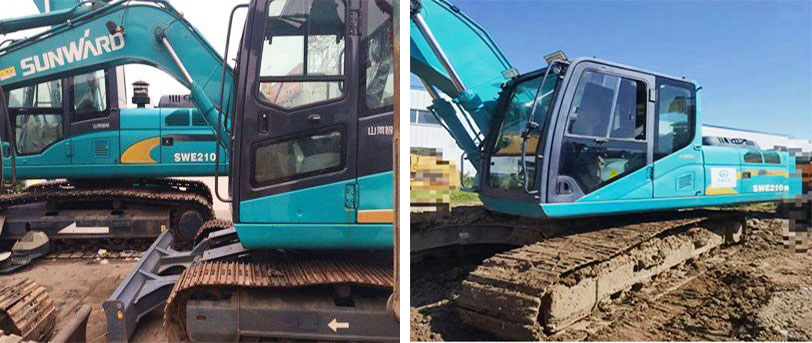

Product Image
