Condition : Brand New and Used
Brand : SUNWARD
Tonnes :26 tons
Model :SWE215F
Backet Capacity : Multiple choices
Product Parameters
| ENGINE | ||||||||
| Brand | CUMMINS | |||||||
| Model | QSB6.7 | |||||||
| Type |
Direct injection, 4-stroke,
water-cooled, turbocharged, intercooled
|
|||||||
| Displacement | 6.7L | |||||||
| Power | 129kW/2200rpm | |||||||
| DIMENSIONS |
|
|||||||
| Counterweight Clearance | 1060mm |
|
||||||
| Tail Swing Radius | 2750mm |
|
||||||
| Shipping Length | 9570mm |
|
||||||
| Shipping Width | 2800mm |
|
||||||
| Shipping Height | 2970mm |
|
||||||
| WORKING RANGES |
|
|||||||
| Max. Cutting Height | 9750mm |
|
||||||
| Max. Loading Height | 6980mm |
|
||||||
| Max. Digging Depth | 6750mm |
|
||||||
| Max. Vertical Wall Digging Depth | 5900mm |
|
||||||
| Max. Digging Reach | 9940mm |
|
||||||
| Max. Digging Reach (Ground) | 9775mm |
|
||||||
| Bucket Digging Force | 155kN |
|
||||||
| Stick Digging Force | 110kN |
|
||||||
| Ground Pressure | 46kPa |
|
||||||
| Swing Speed | 11.8rpm |
|
||||||
| ELECTRIC SYSTEM | ||||||||
| Nominal voltage | 24V | |||||||
| Batteries | 120Ah | |||||||
| Alternator | 24V-120A | |||||||
| Starter | 24V-7.8kW | |||||||
| DRIVE | ||||||||
| Max. Travel Speed (2nd/1st) | 5.2/3.3km/h | |||||||
| Gradeability | 35° | |||||||
| Max. Traction | 193kN | |||||||
| CAPACITY |
|
|||||||
| Fuel Tank 385L |
|
|||||||
| Hydraulic Tank 290L |
|
|||||||
| UNDERCARRIAGE | ||||||||
| Length to center of rollers | 3465mm | |||||||
| Track length | 4260mm | |||||||
| Track gauge | 2200mm | |||||||
| Undercarriage Width | 2800mm | |||||||
| Track shoe width | 600mm | |||||||
| HYDRAULIC SYSTEM |
|
|||||||
| Main Pumps |
|
|||||||
| Type | 2 piston pumps |
|
||||||
| Displacement | 2x240 L/min |
|
||||||
| Working Pressure | 31.4/34.3MPa | |||||||

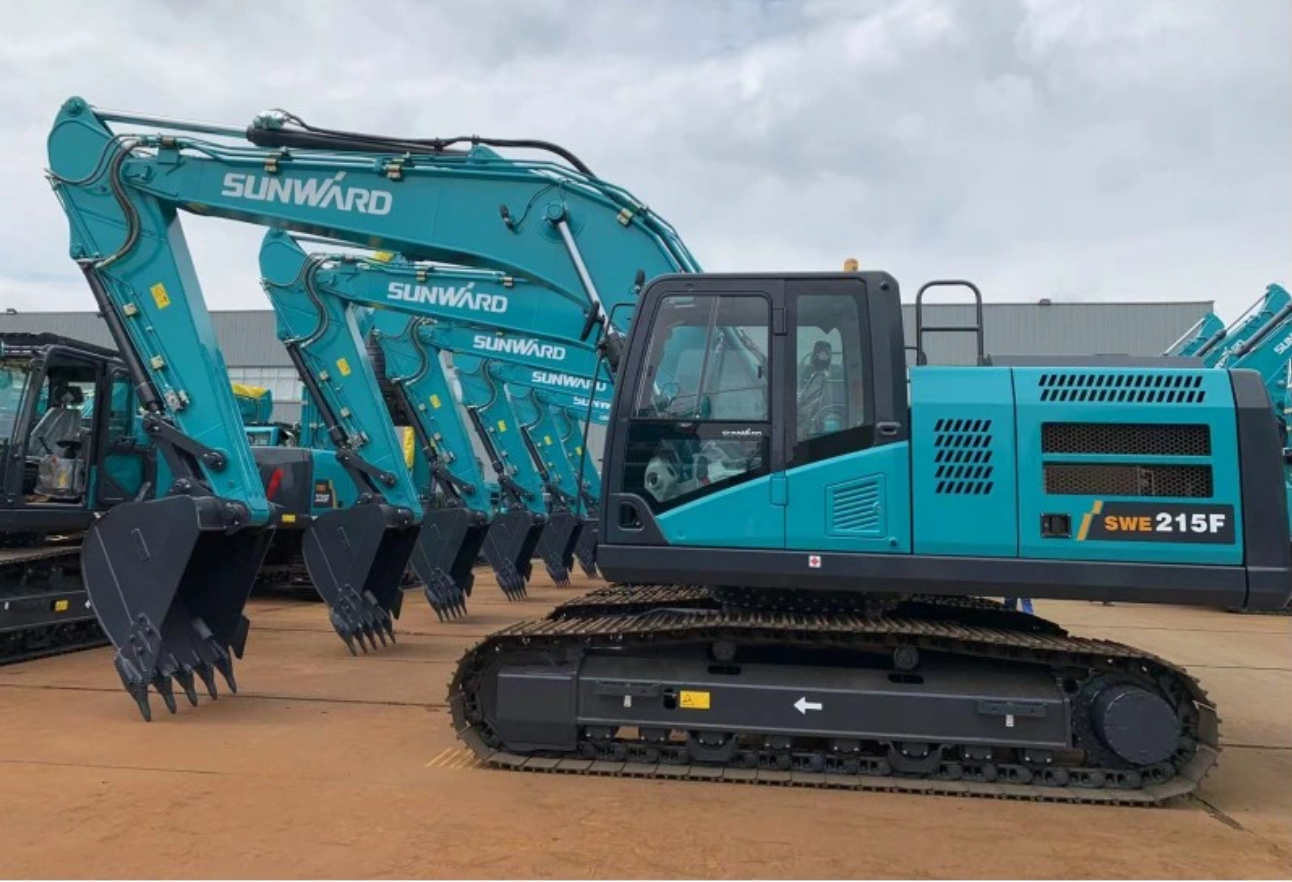

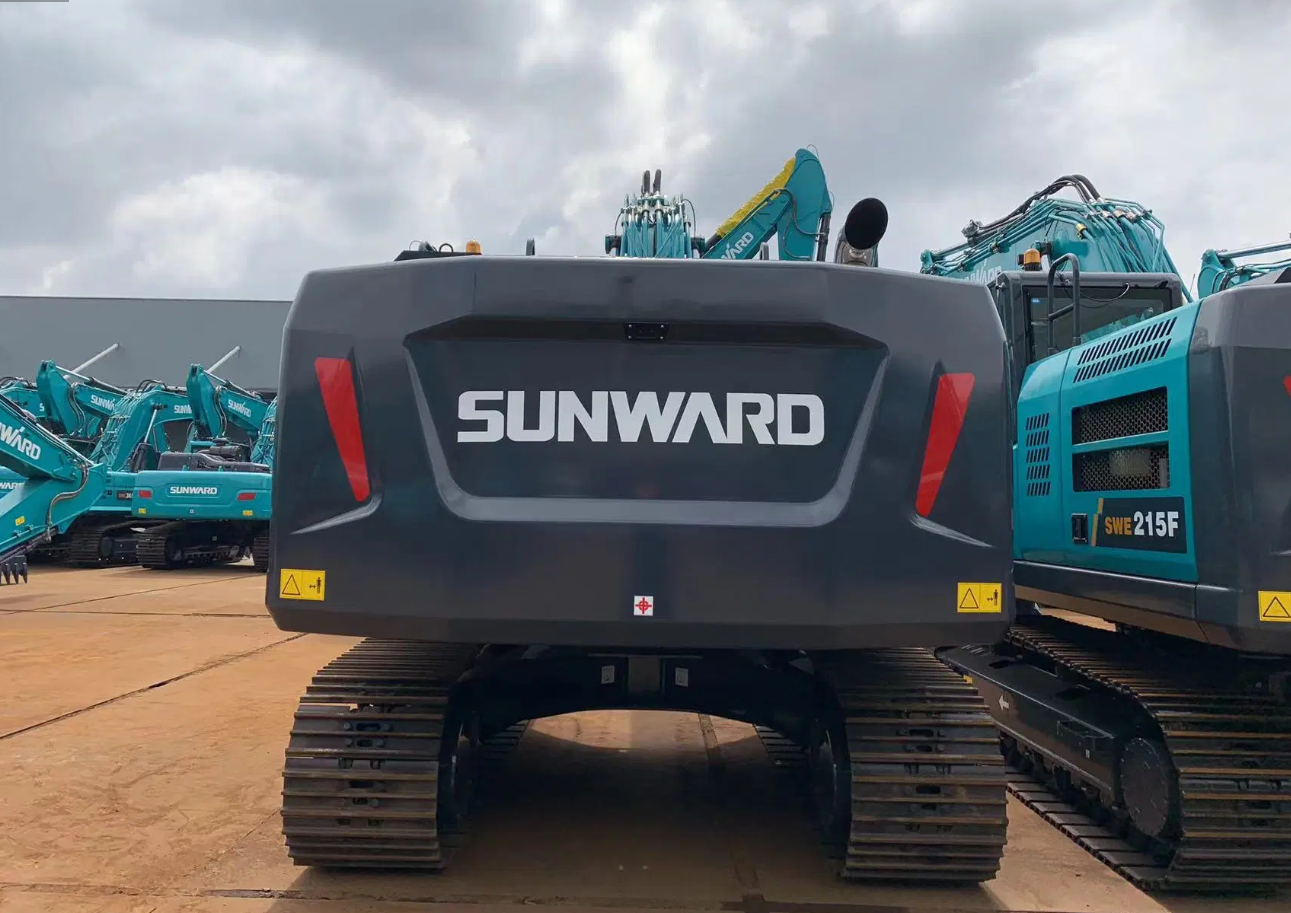

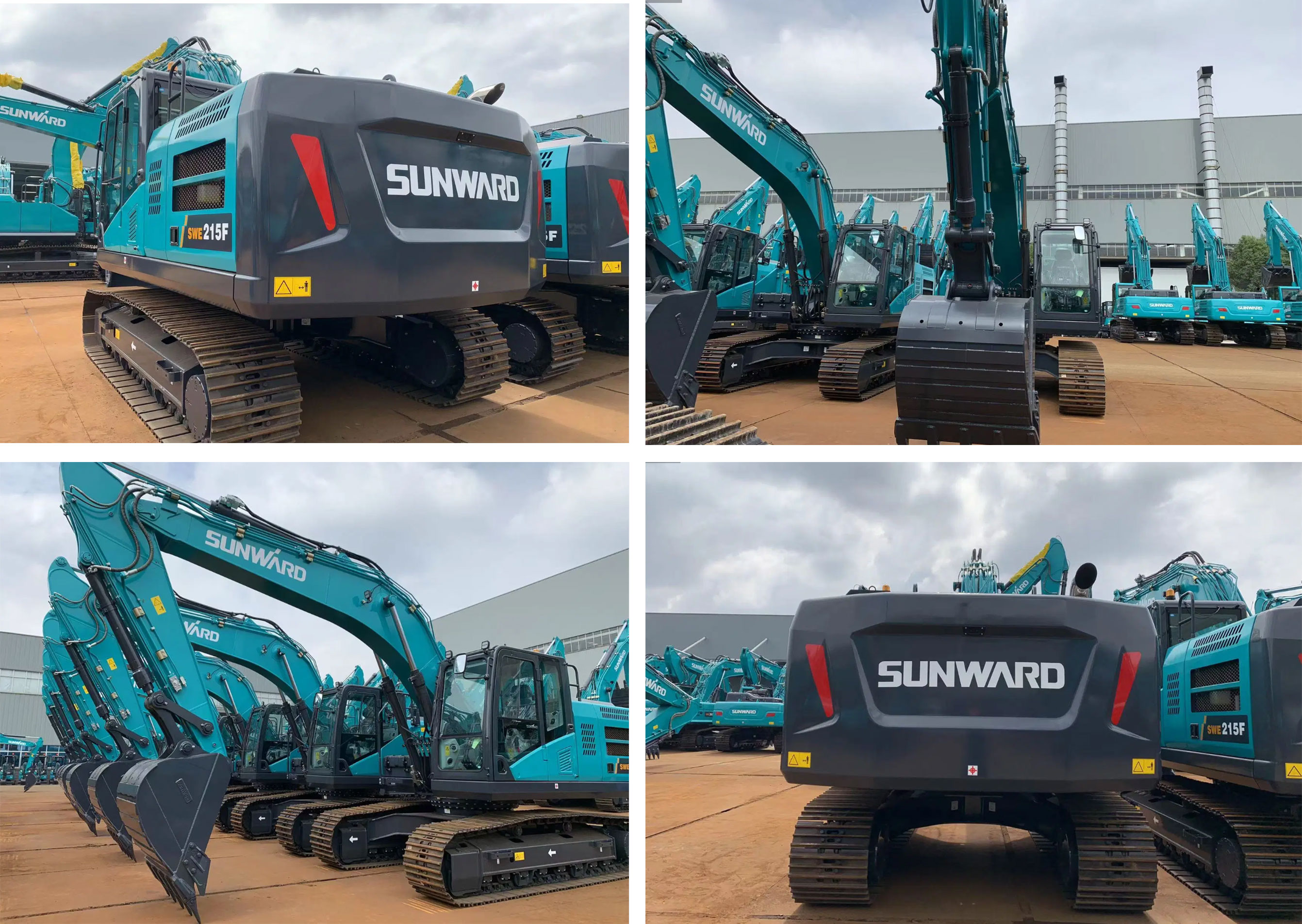

Product Images
